Attacknet: Chaos engineering on Ethereum

March 18, 20244 min readBy pk910, barnabasbusa and parithosh
Attacknet: Chaos engineering on Ethereum

Introduction

Chaos testing is a disciplined approach to testing a system by proactively simulating and identifying failures. Ethereum networks in the wild are subject to a lot of real life variances that have historically been difficult to capture in local tests. We've worked with Trail of Bits to create a tool that combines the two worlds together, allowing us to create local networks that can simulate real world chaos and failures. Examples would include adding network latency between nodes, killing nodes at random, filesystem errors being returned, etc

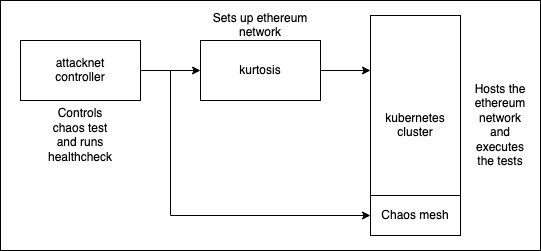

Such a tool has two major components:

  1. A tool to deploy Ethereum networks
  2. A tool to orchestrate the chaos tests.

We have already solved 1. with Kurtosis, it allows us to reliably deploy Ethereum networks (irrespective of which fork we're testing) to perform local docker based tests or remote Kubernetes based tests. To solve 2., we used a kubernetes testing framework called Chaos Mesh which allows us to configure a host of failures that are then executed by the orchestrator. While these pieces of software give us the functionality we need, they don't provide the ease of use.

Introducing Attacknet, the missing piece was a software that can ingest a test definition and execute it for us. This would allow us to configure lists of cases we would like to see and have the execution of the test taken care of us. The software can also perform healthchecks and attempt to ascertain if a network was negatively affected by the chaos or not.

Chaos types

Attacknet allows us to configure the following types of chaos for any duration we like and some also allow additional randomness (i.e, run fault only x% of time):

  • Network:
    • Network latency
    • Jitter
    • Packet drop
    • Packet corruption
    • Bandwidth limits
  • Network split and re-joining
  • Clock skews (i.e, NTP faults)
  • CPU load
  • RAM Load
  • Input/Output:
    • Disk faults
    • Disk access latency
    • I/O mistakes
  • Service crashes (i.e, kills)
  • WIP: Kernel faults

Test Scenarios

Currently there are 3 factors we are playing with, i.e: Client combo in the network, Type of Chaos and Parameters of chaos. Here are some initial tests we planned:

Test NumberDescriptionChaos TypeParametersAnalysis ObjectiveNotes
1Single EL type, One of each CL.Network latencyLatency: 100ms, 500ms, 1000ms, 2000ms with 10% jitterAnalyze the number of missed slots and correlate with latencyRepeat with every EL
2Single EL type, One of each CL.Network packet dropPacket Drop: 5%, 10%, 50%, 100%Analyze the number of missed slots and correlate with packet dropRepeat with every EL
3Single EL type, One of each CL.Clock skewClock Skew: 100ms, 500ms, 1000ms, 2000msAnalyze the number of missed slots and correlate with clock skewRepeat with every EL (EL shouldn’t matter in this test)
4Single EL type, One of each CL. Apply partition to one CL at a time.Network partitionN/AAnalyze if the CL can rejoin the network after the split is healedPotentially use static peers to avoid downscoring issues. Restart of pods might be necessary. Repeat for every EL.
5Single EL type, One of each CL. Split network into two halves.Network partitionN/AAnalyze if the network can self healUse static peers to avoid downscoring issues. Repeat for every EL.

We're trying to be vary of adding too many variables into the mix, we don't have good ways of knowing when a run "fails", so we're erring on the side of cation and building networks with more controlled changesets.

Conclusion

Attacknet allowed us to simulate a lot of edge case test scenarios for the Dencun fork. We're going to continue using the tool for research into peerDAS as well as for hardening Ethereum clients. The next focus of the team will be to setup automated testing with attacknet, to allow us to run it without manual oversight.

Find more information about Attacknet here: https://github.com/crytic/attacknet
